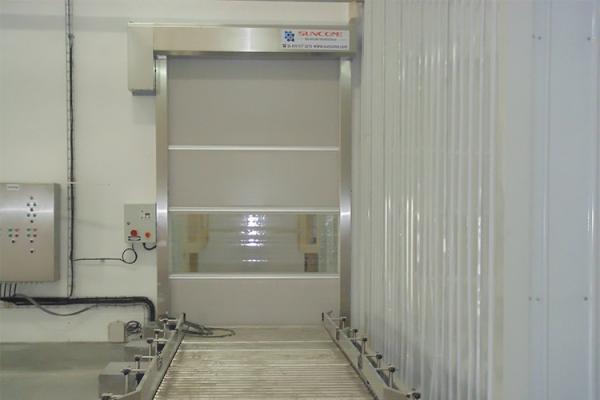

Galvanized Steel High Speed Roll Up Door Energy Saving Elegant Appearance

  • 1
  • 2
  • 3

Brand Name : SUNCOME

Model Number : H2008

Certification : CE/ISO9001:2008

Place of Origin : China

MOQ : 1 unit

Price : negotiation

Payment Terms : T/T

Supply Ability : 100 units per month

Delivery Time : 25 working days after received your payment

Packaging Details : Standard Plywood Package

Product Name : High speed roll up door

Application : Big wind area

Thickness of Curtain : 1.2mm PVC

Ambient Temperature : ≥0 ℃

Opening Speed : 1.2m/s

Closing Speed : 0.8m/s

Standard Frame : Galvanized steel

Model : Outside speed door

Contact Now

High Efficiency Energy Savings Galvanized Steel High Speed Roll Up Door

Activation System

Open and Close the door:

  • Radar
  • Induction Loop
  • Remote
  • Card Sensor
  • Pull Cord
  • Push Button
  • Touching Panel for Cleaning Room
  • Central-Computer Controlling

Safety System

Safe Equipment:

  • Beep
  • Anti-wind Bar
  • Traffic Light
  • Wireless safety Edge
  • Built-in Photo Cell
  • Emergency Handle
  • Shoulder Protection
Curtain Color Grey, White,Red
Anti wind bar No anti wind bar
Power supply AC 220V-240V, Single-Three Phrase, 50HZ
Temperature -7 to 65 Celsius degree
Normal Working -5 to 65 Celsius degree
Standard Motor Position Left
Installation Base Concrete,Panel, Brick,Steel Structure.
Installation Space ≥600mm above the door
≥600mm for motor side
≥200mm for non-motor side
≥800mm in front of the door
Using Area

For Production Line

Why Choose us?

  • CE Certification: patent number--2012204951286;201220495059
  • ISO NO: 00913Q12336ROS
  • Customized products for clients
  • Designed for the long term, high frequent operating with reasonable price
  • High quality and high performance.
  • Pofessional researching and developing innovation on products

Technical Parameter for speed door

Max Size:4000mm(W)*4000mm(H)

Opening Speed:1.2m/s

Closing Speed:0.6m/s

Wind load Max:12m/s

Mechanical Unit

Frame:Galvanized steel

Inner Frame: Galvanized steel

Thickness of shaft cover:

Motor cover:Yes

Frame Size:120mm*120mm

Control Unit

Control system

  • S150 FU Micro-processor
  • English Man-Machine Interface
  • Self Trouble-Shooting Recognizing system
  • Bigger LED Screen

Control Box Size:320 X 400 X 210 mm

Driving System

Feature:Absolutely Encoder

Driving Unit Brand:ABB Motor / Yaskawa Frequent Convert

Galvanized Steel High Speed Roll Up Door Energy Saving Elegant AppearanceGalvanized Steel High Speed Roll Up Door Energy Saving Elegant Appearance
